This is what works for me, others may set up differently...

2 - 100 cu ft HP 100 Worthington steel tanks

2 - Apeks XTX 50 cold water DIN regulators

c/w    1 - fifth port on right hand reg

          1 - 84” low pressure hose (right side 2nd stage)

          1 - 40” low pressure hose (left side 2nd stage)

          2 - 6” SPG high pressure hoses (for gauges)

          2 - Pressure gauge pointing up (2”)

          1 - 30” BCD inflator left side (under arm over shoulder)

          1 - 15” Drysuit inflator right side (connect to 5th port)

          2 - 90 Deg swivels (one to each 2nd stage)

          1 - regulator necklace

1 - Dive Rite Nomad JT BCD,

        -Modified to carry weight on back of BCD

        -Inflator relocated to left shoulder.

1 - Dive Rite trim pillow c/w 22” low pressure inflator,

       (don’t use this but is emergency buoyancy if required and does not get in the way).

Right hand tank

Left hand tank

gear page

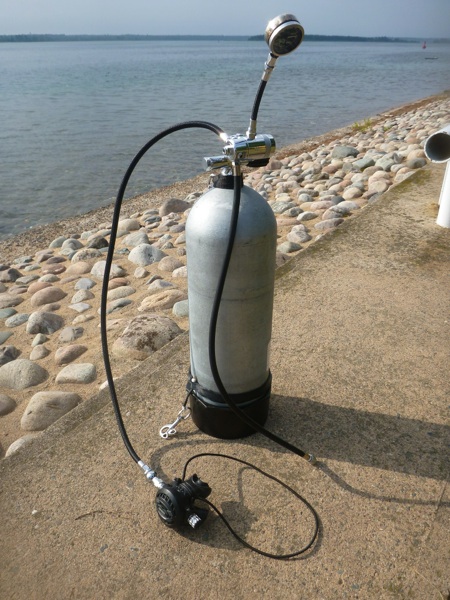

Right hand tank (shown)

8” Stainless gear clamp, covered with hollow webbing

c/w butterfly snap on short length of cave line.

Upper connection is 1” sewn webbing c/w butterfly clip

sized to permit removal without removing the valve.

Elastic bands for stowage of hoses (84” looped)
